Challenger Lifts 5K Medium-Duty Mobile Column Lift CLMM-5000
LEAD TIME 10 BUSINESS DAYS
ALI CERTIFIED LIFT

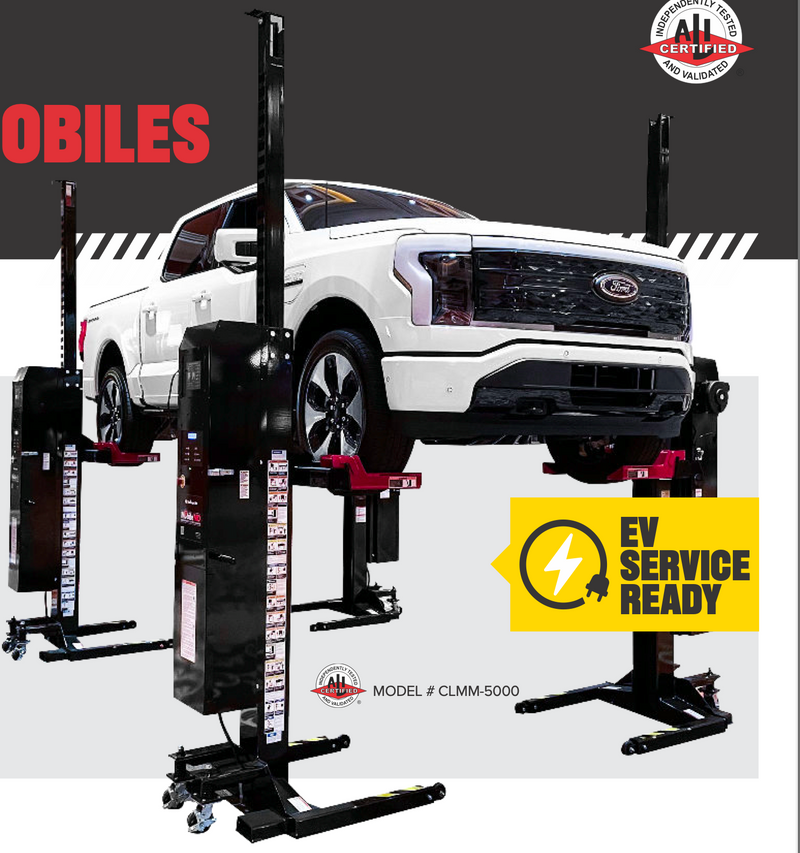

Bring the shop anywhere with Challenger’s medium-duty mobile column lifting system, capable of lifting 5,000 lbs. per column on any solid surface. Built with a heavy-duty tow handles and spring-loaded wheels for comfortable maneuverability. Lift any rubber-tired vehicle up to 20,000 lbs. with four columns connected wirelessly.
(sold seperately, max of 4)
FEATURES
- Sold in sets of 4
- 20,000 lbs. lifting capacity
- Operate from any column
- Rechargeable battery powered
- 110v charging system
- No air required
- Adjustable to fit wheel diameters from 6″ to 22″
FINANCING
Lift Now,
Pay Over Time
with the Synchrony Car Care™ Credit Card.
Convenient monthly payments make your equipment purchase simple.
No Interest if Paid in Full Within 6 or 12 Months 1
On purchases of $199-$749.99 for 6 Months or $750 or more for 12 Months made with the Synchrony Car Care credit card. Interest will be charged to your account from the purchase date if the promotional balance is not paid in full within 6 or 12 Months. Minimum monthly payments required.

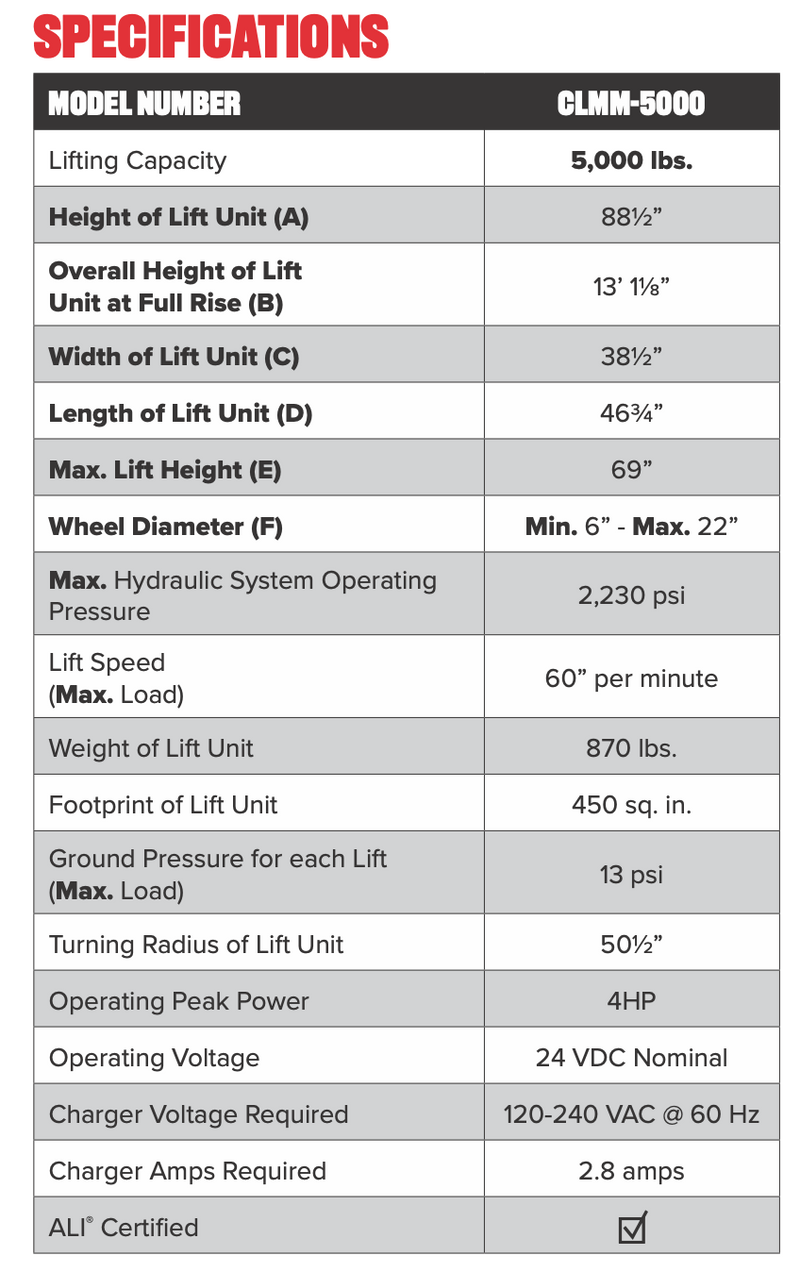

SPECIFICATION

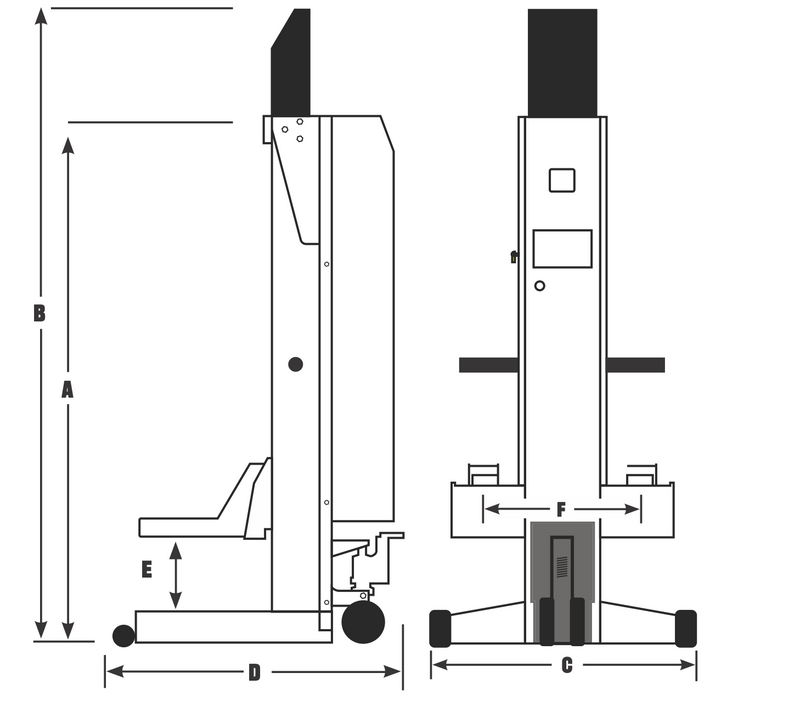

Model NumberCLMM-5000Lifting Capacity Per Column5,000 lbs.Height of Lift Unit88.5"Height of Lift Unit at Full Rise157"Width of Lift Unit38.5"Length of Lift Unit46.75"Maximum Lift Height (4 units)69"Maximum Lift Height (2 units - Normal Mode)32"Min-Max Wheel Diameter6" - 22"Max. Hydraulic System Operating Pressure2,230 psiLift Speed (Max Load)60" per min.Weight of Lift Unit870 lbsFootprint of Lift Unit450 sq. in.Ground Pressure for each Lift (Max. Load)13.04 psiTurning Radius of Lift Unit50.5"Operating Peak Power4HPOperating Voltage24 VDC nominalCharger Voltage Required120-240 VAC @ 50-60 HzCharger Amps Required2.8 AmpsColors AvailableBlack
SHIPPING
Shipping Policy Estimated Processing & Shipping Times for Orders.
Your Lift ships on a Flat bed Freight Truck company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsilbe for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 12-21 days depending on your location so please be patient.
WARRANTY
LIMITED WARRANTY
Challenger Lifts, Inc. lifts are guaranteed to the original owner. Challenger Lifts, Inc. shall repair or replace, at Challenger Lifts, Inc.option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to Challenger Lifts, Inc.specifications set forth in Challenger Lifts, Inc. installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a Challenger Lifts, Inc. authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of Challenger Lifts, Inc.
The remedies described are exclusive and in no event shall Challenger Lifts, Inc. Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.
Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.
Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.
Note: Warranty registration must be completed online at https://www.challengerlifts.com/register-your-lift/ or warranty period will beging from invoice date of lift purchase.
