• 7,000 lb. lifting capacity or 9,000 lb. lifting capacity models available
• Up to 85.5” service rise height in top locked position

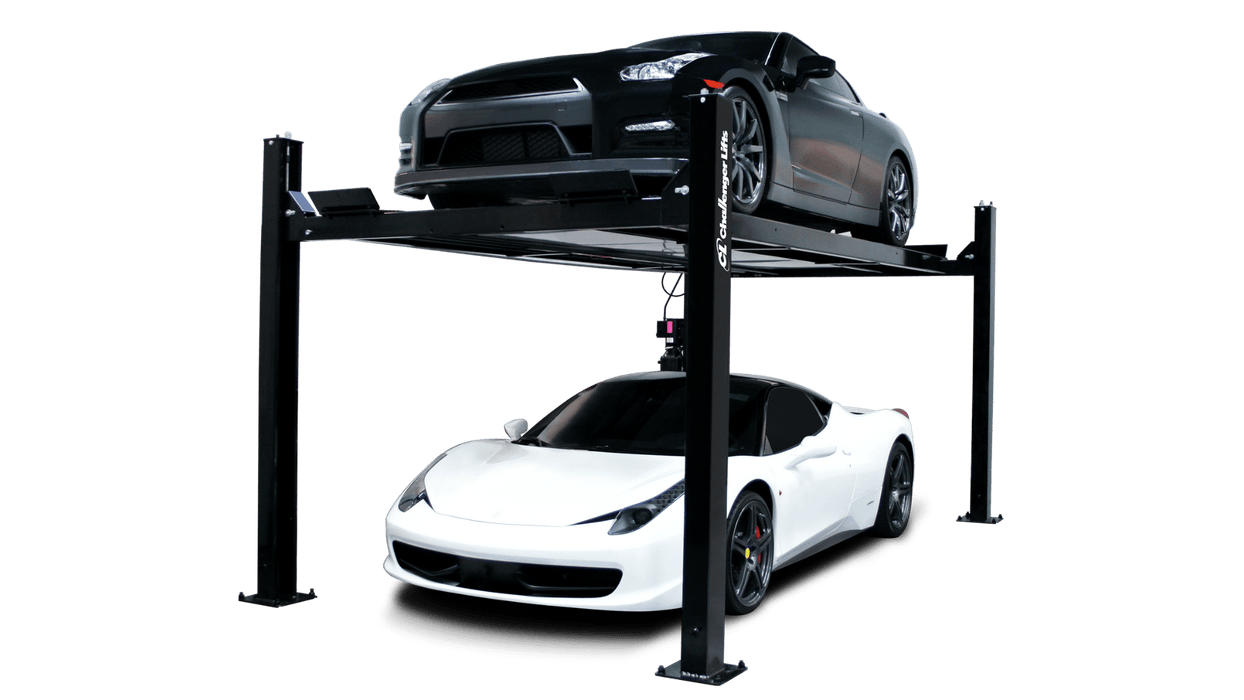

• Up to 80″ clearance in top locked position for storage application
• Multiple heights, lengths and widths available (9,000 lb. models only)
• Adjustable lock ladders allow for a versatile install with sensitivity to uneven floors
• Commercial-grade formed runways ensure a strong, stable unit
• Single-point manual lock release disengages column locks simultaneously
• Air not required for operation
• Anchoring not required to maintain ALI/ETL certification
• Larger columns and base plates add stability  (9,000 lb. models only)
• Built-in runway rail system provides versatility to add convenience options like rolling jacks and oil drip trays (sold separately)
• Powder coat finish provides long-lasting durability

Lift Now,
Pay Over Time

with the Synchrony Car Care™ Credit Card.

Convenient monthly payments make your equipment purchase simple.

No Interest if Paid in Full Within 6 or 12 Months 1

On purchases of $199-$749.99 for 6 Months or $750 or more for 12 Months made with the Synchrony Car Care credit card. Interest will be charged to your account from the purchase date if the promotional balance is not paid in full within 6 or 12 Months. Minimum monthly payments required.

APPLY NOW

 Model NumberCL4P7 Lifting Capacity 7,000 lbs. Length Overall 195.5” Width Overall 100.5” Inside Columns 92.125” Between Columns 147.5” Height of Columns 6’ 7.5” Height of Runways (Floor to top of Runway) 5.75” Width of Runways 20” Width Between Runways 38” Rise Height (Top of Runway at top position) 68.125” Clearance Height (Storage) 63' Max. Wheelbase* 141.5” Crossbeam Clearance Height 63” Motor 1HP/2HP Voltage (1 Phase Std) 115v/230v Speed of Rise (115v/230v) 120/60 s Min. Recommended Bay Size 10’ x 20’ ALI/ETL Certified Yes Colors Available Black

• RJ3.5 Hand pump rolling jack - 3,500 lbs. capacity (CL4P7 only)
•  RJ4.5 Hand pump rolling jack - 4,500 lbs. capacity (CL4P9 only)
•  RJ04-PK Air/Hydraulic Pump Kit - Converts RJ4.5 to air or hydraulic operation
• CL4P9JT Jack Tray - 4,500 lbs. capacity
• CL4P9DTP Plastic Drip Tray Set (set of 4)
•  CL4P9SP Aluminum storage platform set (set of 4) (CL4P9 only). One Set of 4 platforms create an additional storage space between runways of 163”.
•  CL4P9CS Caster Set (set of 4) to make CL4P9 lifts portable
•  CL4P9SR 36 in. Aluminum Ramp Set
•  CL4P9ER 50" Extended Aluminum Ramp Set
• CL4P9PR Steel Bolt-On Pivoting Ramp (CL4P9 only)

Shipping Policy Estimated Processing & Shipping Times for Orders.

Your Lift ships on a Flat bed Freight Truck company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:

• You are responsilbe for unloading the lift from the truck. The truck driver does not unload it for you.
• Lift Gate delivery service is not available for auto lifts.
• You cannot unload an lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift.
• If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
• You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.

When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 12-21 days depending on your location so please be patient.

LIMITED WARRANTY

Challenger Lifts, Inc. lifts are guaranteed to the original owner. Challenger Lifts, Inc. shall repair or replace, at Challenger Lifts, Inc.option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to Challenger Lifts, Inc.specifications set forth in Challenger Lifts, Inc. installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.

This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a Challenger Lifts, Inc. authorized service representative.

This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of Challenger Lifts, Inc.

The remedies described are exclusive and in no event shall Challenger Lifts, Inc. Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.

Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.

Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.

Note: Warranty registration must be completed online at https://www.challengerlifts.com/register-your-lift/ or warranty period will beging from invoice date of lift purchase.
